TOGGLER SNAPTOGGLE BA Toggle Anchor with Bolts, Zinc-Plated Steel Channel, Made in US, 3/8" to 3-5/8" Grip Range, For 3/16"-24 (Pack of 10)
The TOGGLER SNAPTOGGLE BA toggle anchor provides a secure hold from within various hollow materials 3/8" to 3-5/8" thick including gypsum board, drywall, and concrete block, includes 3/16"-24 UNC-threaded bolts, and is made in USA. The anchor channel will not rotate when installing the bolt, whether installing by hand or with a screw gun, and will stay in place if the bolt is removed to facilitate fixture and screw changes. If using bolts other than those supplied, the anchor accepts 3/16"-24 UNC metal bolts with a minimum length equal to the thickness of the item being fastened and the thickness of the mounting material plus 1/2". The SNAPTOGGLE anchor meets Federal Specification FF-B-588-D for Type V anchors.

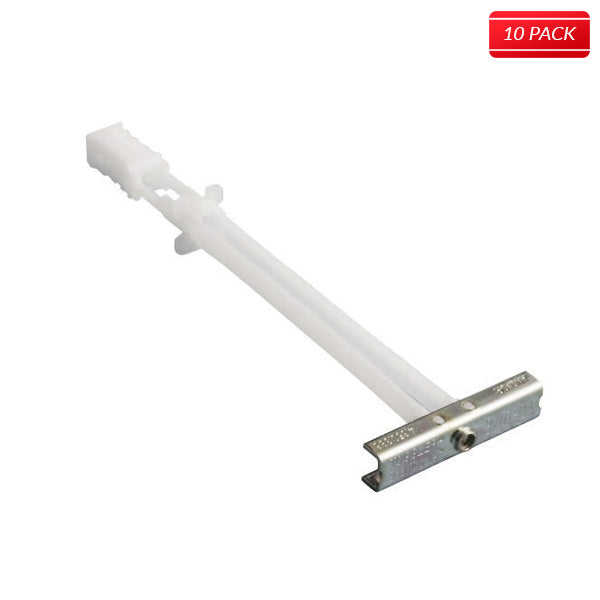

The anchor consists of a corrosion-resistant zinc-plated steel anchor channel that inserts through a 1/2" drilled hole in walls, ceilings, or floors and installs against the back side of the mounting material; plastic straps attached to the channel that position it into place; and a plastic cap that slides down the straps and presses into the drilled hole firmly to lock the anchor channel in place behind the mounting material. Once the cap is set in place, the straps snap off by hand. The item being fastened affixes to the mounting material by inserting one of the included bolts through the item, into the drilled hole, and through the anchoring channel behind the material and tightening.
Specifications
Ultimate Tensile and Shear Strength Values
| Media | Drill Diameter | Bolt Description | Ultimate Tensile Strength Values | Ultimate Shear Strength Values |
| 1/2" Drywall | 1/2" | 3/16"-24 UNC zinc-plated steel | 238 lb. | 247 lb. |
| 5/8" Drywall | 1/2" | 3/16"-24 UNC zinc-plated steel | 356 lb. | 298 lb. |
| 1/2" Drywall with 25 Gauge Stud* | 1/2" | 3/16"-24 UNC zinc-plated steel | 412 lb. | Not Available |
| 5/8" Drywall with 25 Gauge Stud* | 1/2" | 3/16"-24 UNC zinc-plated steel | 462 lb. | Not Available |
| Concrete Block | 1/2" | 3/16"-24 UNC zinc-plated steel | 802 lb. | Not Available |
ÕÌ_
*Failure measured as breakage of drywall portion.
Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the ÕÌ_manufacturer's technical bulletin.
Anchors provide reinforcement to a fastener that would otherwise have insufficient hold in substrates such as concrete, brick, stone, drywall, or other materials for a particular application. The fastener may be included with or integrated into the anchor itself, or it may be sold separately. Anchors provide support through various methods, including expansion from within or behind the substrate or even adhesive compounds.
TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT.
WhatÌ_Ì_ Ès in the Box?
- (10) TOGGLER SNAPTOGGLE BA toggle anchors
- (10) 3/16"-24 UNC bolts
