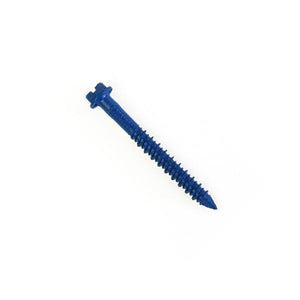

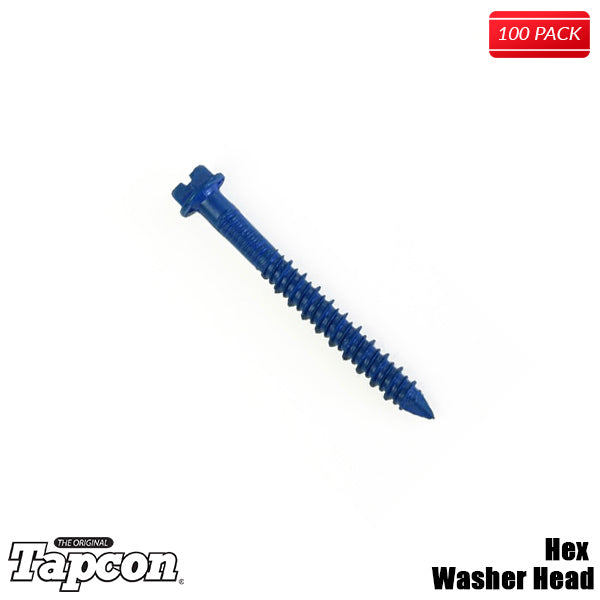

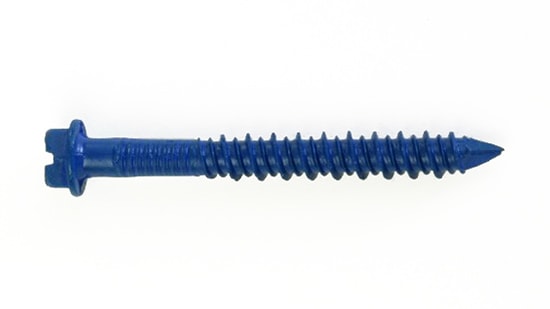

ITW Red Head HW3-214 3/16" x 2-1/4" Tapcon Climaseal Masonry Anchor 100 Per Box
Red Head Tapcon 3/16" x 2-1/4" Hex Washer Head Anchor is the "original masonry" anchor that cuts its own threads into concrete, brick, or block. Maximum performance is achieved because the Tapcon Anchor, the Condrive Installation Tool, and the carbide-tipped Tapcon Drill Bits are designed to work as a system. It is essential to use the Condrive tool and the correct drill bit to assure consistent anchor performance. A Phillips Flat Head style is available when flush seating is necessary in countersink applications. The Climaseal Coating is standard on all Tapcon anchors to provide extended corrosion resistance. Advanced thread form cuts into masonry materials for greater stability and pullout values Lengths of Tapcon Anchors range from 1-1/4 inch to 4 inch in 3/16 inch and up to 6 inch 1/4 inch diameters. Nail-Type Point guides the anchor into the pre-drilled hole, so no hole spotting or inserts are required. These anchors install fast and easily (three anchors per minute), and are excellent for wood to concrete applications. Specs: Fixture Thickness - 1-1/4 to 1-3/4 inches; Bit Length - 4-1/2-Inch inches.
Specifications
| Size | 3/16 x 2-1/4 in |
| Anchor Diameter | 3/16 in |
| Effective Length | 2-1/4 in 57.2 mm |
| Price Unit of Measure C = 100 EA = 1 | C |
| Case/Qty | 100 |
| Weight/Box | 1.3 lbs |
| Material | Carbon Steel with Climaseal |
With over one billion anchors sold, the Original Blue Tapcon with Climaseal coating provides:
- Superior holding strength
- Corrosion-resistance and long-lasting performance due to the innovative Climaseal blue coating
- The ability to withstand harsh conditions
- Long-lasting performance
- A reputation for quality, strength and ease of installation from industry professionals
- Hex Washer Head (HW)
