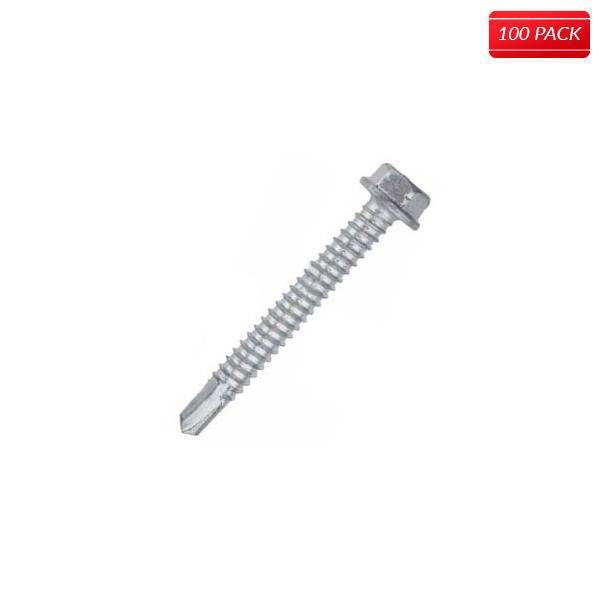

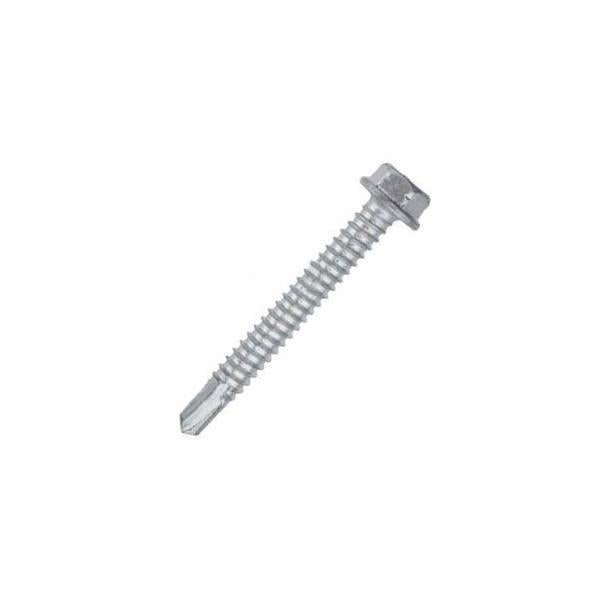

ELCO Bi-Flex 300 Series SS Fasteners: 1/4-20 x 1 1/2", Hex Head, #3 Point

$126.60
Customer Reviews
Quantity

:Unavailable

: EAJ580-B

: Fastener

: ELCO

: ELCO Construction Fasteners & Screws, Shop ELCO Bi-Flex Stainless Steel Screws

Elco Bi-Flex self drilling screws with a 300 series stainless steel head have threads fused to hardened steel lead threads and self-drilling point. The Stalgard GB coating provides a galvanic barrier. #2 self-drilling point can drill thicknesses up to .110". #3 self-drilling point can drill thicknesses up to .312". #5 self-drilling point can drill thicknesses up to .500". #10 & #12 screws use a 5/16" hex drive, #14 screws use a 3/8 hex drive. Bi-Flex fasteners provide unmatched corrosion resistance and high performance in a wide range of demanding applications, including aluminum, and are virtually immune to delayed embrittlement failures.

Specifications

Dia. - TPI

  1/4-20


Length (L)

  1-1/2 in


Head Style

  Hex


Drive System

  3/8 in Hex


Point Style

  #3


Max. Load-Bearing Length (B)1

  1.00 in


Pieces per 1/4 Keg

  1000


Weight per 1/4 Keg

  32


Description

  1/4 - 20 x 1-1/2"


Head Size

  Hex Washer Head


Screw Type

  B-Flex 300 Series Stainless Steel Bi-Metal Self-drilling Screws


Finish

  Stalgard® GB (Galvanic Barrier) Coating



USA/Import

  Made in USA


Material

  Hardened Steel Tapping Threads and Point Fused onto an 18-8 Stainless Steel Shank and Head


1 The load-bearing length is the length of 300 series stainless under the hex head or including the flat head. Hardened steel length (lead threads and point) should be through the connection and not in the load bearing section of the connection.

Features and Benefits
  • High strength, ductility and reliability
  • Virtually immune to delayed embrittlement failures
  • Greater galvanic compatibility in dissimilar metal applications involving aluminum
  • High in-place value over the life of application
